ER14250M-23.6V1600MAH Wire 5CM Battery used in smart meters automation instruments, medical devices, wireless communication equipment, burglar alarm systems, automotive electronics, the Internet of Th

Détails sur le produit:

Lieu d'origine: Chine
Nom de marque: TAC
Certification: CE MSDS UL
Numéro de modèle: ER14250M-2

Conditions de paiement et expédition:

Quantité de commande min: négociation
Prix: Négociable
Détails d'emballage: Carton
meilleur prix Contact

Détail Infomation

Description de produit

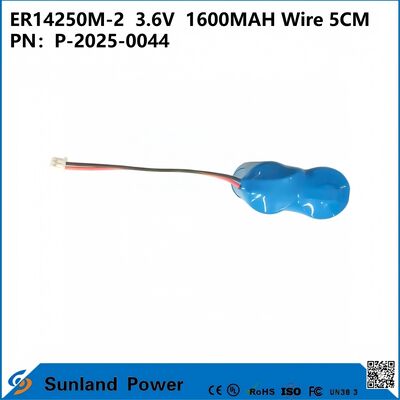

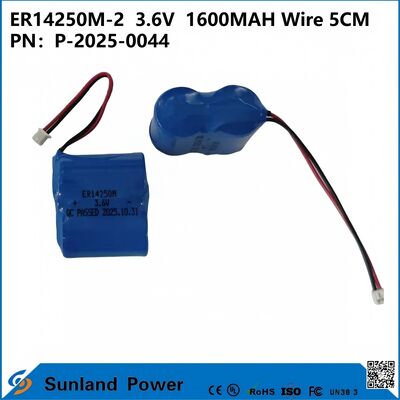

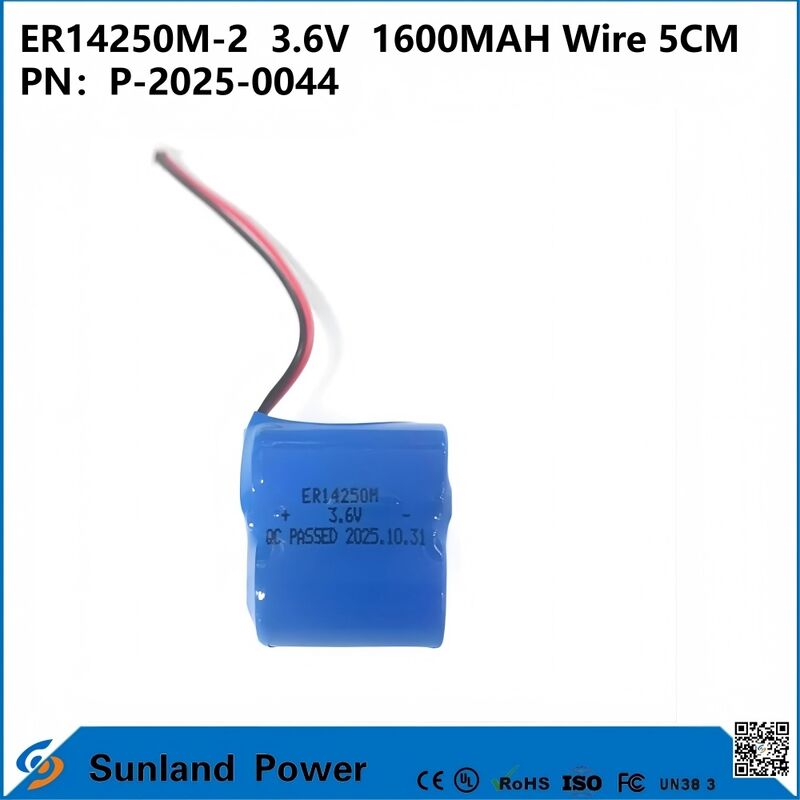

ER14250M-23.6V1600MAH Wire 5CM Battery



ER14250M-23.6V1600MAH Wire 5CM Battery used in smart meters automation instruments, medical devices, wireless communication equipment, burglar alarm systems, automotive electronics, the Internet of Th 0ER14250M-23.6V1600MAH Wire 5CM Battery used in smart meters automation instruments, medical devices, wireless communication equipment, burglar alarm systems, automotive electronics, the Internet of Th 1





ER14250M 3.6V 1600mAh Lithium Thionyl Chloride Battery

Product Overview

The ER14250M is a high-performance lithium thionyl chloride (Li-SOCl₂) primary power battery, featuring a fully sealed stainless steel cylindrical casing with dimensions of 14.5 mm in diameter and 25.0 mm in height, also known as a 1/2AA size battery. Renowned for its excellent high-power discharge capability and reliability, this battery serves as an ideal power solution for industrial instruments, smart metering, remote monitoring, and other demanding applications.

Core Technical Specifications

Basic Electrical Characteristics:
  • Nominal Voltage: 3.6V (Open Circuit Voltage ≥ 3.65V)
  • Rated Capacity: 750‑800mAh (High-Power Type)
  • Maximum Continuous Discharge Current: 100mA
  • Maximum Pulse Current: 250mA
  • Cut-off Voltage: 2.0V
Physical Characteristics:
  • Dimensions: Φ14.5 × 25.0mm
  • Approximate Weight: 10g
  • Operating Temperature Range: -55℃ to +85℃
  • Annual Self-Discharge Rate: ≤1%
  • Shelf Life: Over 10 years

Key Features & Advantages

High Energy Density: With a specific energy of up to 430 Wh/kg, it delivers extended runtime in a compact form factor. Over 90% of its capacity is discharged on a nearly flat high-voltage plateau.
Wide Temperature Performance: Capable of reliable operation in extreme temperatures from -55℃ to +85℃. It retains about 50% of its nominal capacity at -55℃, demonstrating excellent adaptability to both high and low temperatures.
Ultra‑Long Life & Low Self‑Discharge: The passivation effect from the LiCl protective film formed at the lithium anode‑thionyl chloride electrolyte interface results in an annual self‑discharge rate below 1% and a shelf life exceeding 10 years at room temperature.
High‑Power Discharge Capability: As a high‑power battery, the ER14250M is especially suitable for high‑power continuous and pulse discharge applications. Its maximum pulse current reaches 250mA, which is more than five times that of standard capacity‑type batteries.
Safety & Reliability: The fully sealed stainless steel housing ensures integrity through hermetic welding. Internal safety features such as venting grooves and fuses provide protection against over‑pressure and short circuits. Free of heavy metals like mercury, cadmium, and lead, it meets environmental requirements.

Applications

Smart Metering Systems:
  • Smart electricity, water, gas, and heat meters
  • AMR for utility meters & CMOS circuit boards
  • Flow meters, gas/water quality detectors
Industrial Control & Security:
  • PLCs, CNC systems, machine tools, servos
  • Smoke detectors, burglar alarm systems
  • Medical devices, emergency lighting systems
Automotive Electronics & IoT:
  • Tire Pressure Monitoring Systems (TPMS)
  • Wireless sensor networks, remote monitoring
  • IoT devices, asset trackers
Defense & Military:
  • Aerospace, underwater sonar, navigation equipment
  • Military communication systems, security apparatus

Quality Certifications

The product is ISO 9001 certified and holds international approvals including UL, CE, SGS, RoHS, and UN 38.3, ensuring compliance with global market access requirements.

Important Usage Notes

  1. Non‑Rechargeable: The ER14250M is a primary (non‑rechargeable) lithium battery. Charging is strictly prohibited​ as it may cause explosion or fire.
  2. Prevent Short Circuits: Avoid direct contact between the positive and negative terminals.
  3. Correct Installation: Install the battery according to the correct polarity specified by the device.
  4. Avoid High Temperatures: Store at a maximum temperature of 30℃. Do not expose to heat or incinerate.
  5. Transportation Regulations: Transportation must comply with Dangerous Goods Safety Regulations.
With its high energy density, wide operating temperature range, ultra‑long life, and reliable performance, the ER14250M battery is the preferred power solution for industrial‑grade applications, providing durable and stable power support for various smart devices and remote monitoring systems.
